Catv 1pcs/pack Passive Fwdm5/34- Device -abs-g657a-0.5m T1530~1620/r1260~1360&1480~1500 Madden Yahaira Rating: 3.9 out of 5
Simply as you will get a fortune, this item is able to offer a lorry that needs to be extremely interesting for you. The product catalog you get is definitely offer a reference for those of you who desire to discover the product you desire.
1 Description

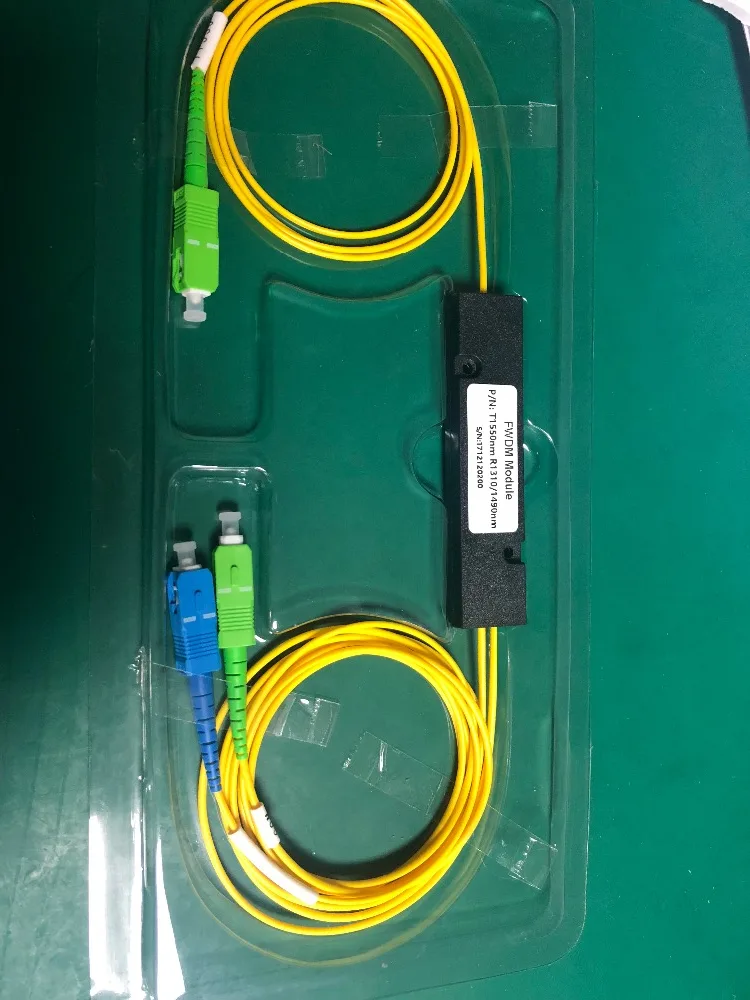

YHH’ 3-Port CATV Filter-based WDM device demonstrates low loss and reliable performances. The device possesses broad pass-band and high isolation which make it an ideal option for system monitoring and WDM systems. Easily customizable, YHH’ FWDM can be configured with standard packaging and connector options.
2 Feature
l Low insertion loss
l Wide pass band
l High channel isolation
l Low polarization dependent loss
l Exceptional reliability and stability
l Epoxy free optical path
l Telcordia/Bellcore Compliant
3 Applications
l System Monitoring
l WDM system
l Transmitters and Fiber lasers
l Fiber Optical amplifier
l Fiber optic Instrument
4General specification
Parameters | Unit | CATV FWDM5/34 | |
Normal Information | Transmission Wavelength | nm | 1530~1620 |
Reflection Wavelength | nm | 1260~1360&1480~1500 | |
Port of Transmission | Transmission Insertion Loss | dB (Max.) | 0.6 |
Transmission Channel Isolation | dB (Min.) | 40 | |
Passband Ripple | dB (Max.) | 0.3 | |
Polarization Dependent Loss | dB (Max.) | 0.1 | |
Port of Reflection | Reflection Insertion Loss | dB (Max.) | 0.4 |
Reflection Channel Isolation | dB (Min.) | 20 | |
Polarization Dependent Loss | dB (Max.) | 0.1 | |
Others | Directivity | dB (Min.) | 50 |
Return Loss | dB (Min.) | 50 | |
Polarization Mode Dispersion | Ps (Max.) | 0.1 | |
Power Handling | mW(Max.) | 500 | |
Tensile Load | N(Max.) | 5 | |
Operating Temperature | ℃ | -40℃~85℃ | |
Storage Temperature | ℃ | -40℃~85℃ | |
Package Dimensions | mm | ABS | |
Fiber type | - | SMF-28e+ or ITU-T G657.A | |
NOTES:
1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.
2) PMD and chromatic dispersion values are guaranteed by design.
3) Specifications are subject to change without notice
4) The default connector is COM:SC/APC; 1550:FC/APC; 1310/1490: SC/UPC, Also can be customized according to customer requirements
