Waterproof Electric Motorcycle mp3 player anti-theft alarm system FM audio player for motorbike with remote
1.Product
Support wired and wireless remote control and anti-theft alarm function independently（When subjected to external collision machine, alarm sound fierce），MP3 support TF memory card and usb flash，Host seal waterproof and dustproof, all aluminum body, with circulation play music, the volume and the current when the power is music memory function，Charging the mobile phone function

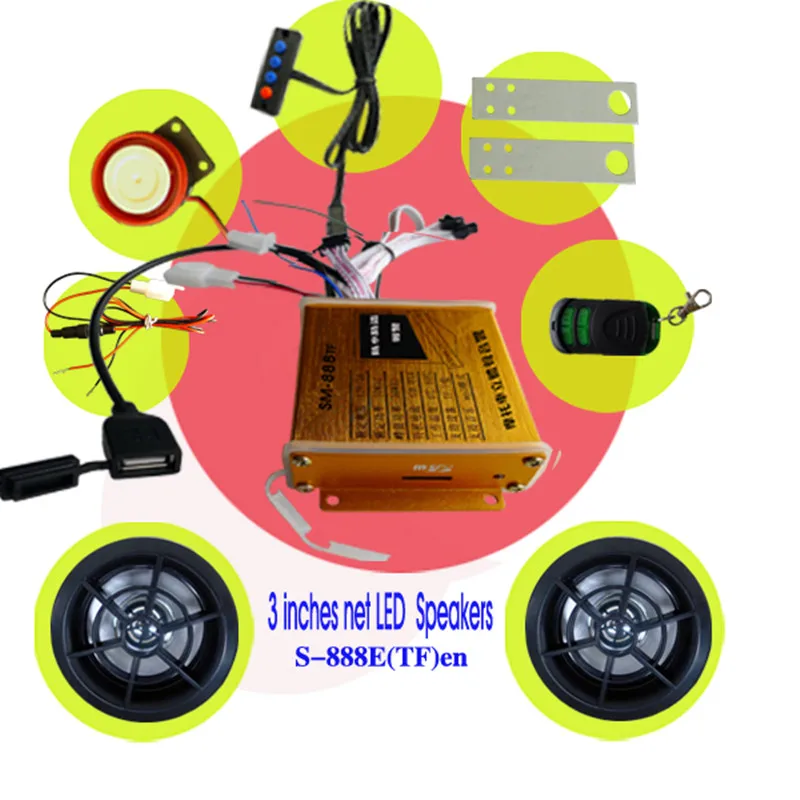

2.Packing list
(1)Host:1； (2)Wireless remote control:1； (3)Speakers:2 ；(4)Cable remote control:1；
(5)Manual：1；(6)Speakers of fixed:2 set；(7)Alarm buzzer:1；(8)2p power cord:1；
3. Basic operations
A Installation instructions
（front panel） （rear panel）（cable controller）
(1) MP3 format audio files will be kept of the U disk (flash drive) into the USB port or TF memory card inserted in the TF card connector.
(2) Cable the remote control 5 p plug into mp3 player on behind 5 p socket
(3) Will power cord and mp3 2p in host 2p socket connection behind, the other side of socket access to DC 12V power supply. The red line with the insurance for the cathode tube, the black line is negative.
(4) will alarm horn 2 p sockets and host board alarm horn after 2 p plug connection
(5) will sound box 4 P connections with host connected at one end, and the other end to connecting the speakers
B. Remote Control Keys Function
C. Wire key functions
(1) Start / Off: long press the "①" red button two seconds to put device to start playing music, while the red light lit, and then long press the "①"red button two seconds again then close the player, while the red light off. *In anti-theft state, cant boot up
(2) Pause: Long Press "►‖" musical pause, Short press：play / radio conversion
(3) short press” |◄◄ " :last song; short press " ►►| ".next song
(4) Adjust the volume: long press ” |◄◄"volume gradually reduce, long press " ►►| ". volume gradually increases
D Wireless remote control on the operation
(1) In shutdown, press lock button“”, horn "beep" soon as 2 seconds backward that means into the anti-theft status .Then click again, horn "beep, beep" sound of two means unlock shutdown. When playing MP3 or radio the lock button if you want to shutdown ，press Long key“”， Send out alarm signals. search the car function
(2)In the shutdown open mp3, Short press playing “►‖”means sound / radio put/ radio conversion. Long press：pause
(3)By” |◄◄”or”►►| "button 2 seconds is the up and down, When radio the downward and upward is for searching platform. Long press ” |◄◄” reduce volume. Long press ”►►| "increase volume
（4）Working indicator light, in press any button, the light is on
（Wireless remote control）（wireless remote control code button）（ sound box assembly drawing）
E. Wireless remote controller and the host to code
Click the code button，Read card LED lights at this time，At the same time press the wireless remote control“” button，The speakers will make the "du" a sound at this time，Said the remote control code successfully，Continue to use the same method with a different coding wireless remote control code，Only supports two different coding wireless remote control
4. Notes
(1) The player working voltage DC 12V. Voltage too high will damage player, the voltage too low, the player will not work properly.
(2)When install the player, you must pay attention to waterproof, heat, dissipation. Open the soft antenna.
(3) The player supports vast majority of U disk and SD card, a few small U disk and SD card itself is unstable, or too slow is not supported it.
(4) Host aluminum alloy casing is a power amplifier cooling components, the working temperature range of fever is normal.
5. Technical specifications
Voltage: DC12V/3A
Output: 2 × 10W8Ω,Max:2x20w（Original TDA7266SA power amplifier integration）
Output frequency range: 20Hz-20KHZ
Remote Control Distance: open land ≥ 100 meters open
Operating temperature range: -30 ° C to +60 °
Radio frequency：87.5-108 MHZ
6. product warranty details:
The products sold by the host warranty for six months. (In addition to product defined outside of the warranty period) Any of the following do not fall under the scope of the warranty.
(1)The products beyond the warranty period.
(2) The customer fails to use the product manuals for installation and maintenance, such as the use of non-compliance power supply, improper storage, or the use of damage caused by out of the working environment
(3)The damage caused by Self-demolition or alteration of hardware and software failures.
(4)Water or man-made damage.
(5) The damage caused by natural disasters, force majeure factors, such as earthquakes
7. Host and speake install
(1) Will be the host in a motorcycle in hidden places, but need to pay attention to heat dissipation
(2) Two speakers on both sides of the assembly in the rearview mirror
