#Upgraded version of 3463# in stock Product Description:This model is universal Controller 3663 gives the opportunity to build on the base of the laptop or monitor matrix full multimedia TV C T-2 tuner on board without depriving themselves of the opportunity of using it as a monitor.

Controller 3663 has on board analog-to-digital Touraine Rafael R842 with support for T-2, DVB-T, DVB-C, ATV, by just saying support for more digital signal cable, teletext and radio TV. As main chip has allowed not only to exploit the full potential of the TV chip, but not deprived of the possibility of reproducing a photo, video, audio files from a USB drive. All the innovations introduced in this model is made possible by the use of a more powerful master chip.Suitable for Europe, Africa, The five Central Asian countries, the Middle East, Russia, Thailand, Myanmar, Kenya, Portugal, Malta, Uganda and other countries or regions.

Feature:
Support Digital Signal and RussianController chip: LUA63A82
TV tuner chip: Rafael R842
OSD Language: Russian, English, Czech, France, Magyar, Polski, Dansk, Espanol, Hrvatski, Nederlands, Deutsch, Italliano, Norsk, Portugues, Suomi, Svenska, Arabic, etc. (more pls check the video)
Power Input: DC 12V 4A
Chip Audio:
Audio output power: 2x8W
Consumption: operating mode -> = 6W
simple - <0.3W
Video input: TV: DVB-T / T2, DVB-C, ANALOG TV (ATV)
HDMI
VGA
AV IN
YPbPr

Additional inputs outputs: audio mini jack 3.5mm USB
USB slot can be used for updating software and playing multimedia, such as Movie, MP3 and JPEG.Doesnt support audio AC3 720P, If the sound doesnt play via USB, You can recode the audio track. How to know if your panel suitable for this board?Step 1: Find your LCD models resolution (you can check the resolution from this link: ) Step 2: Leave a message when you order ,so we can send the firmware to you.

Supported resolutions: (New updated 1024x600 and 1366x768 2ch 8bit)

Step of USB upgrade :1.Put the firmware of "LUA63A82.bin" in formatted USB flash disk ,then insert the USB disk and the 7KEY-Button to the board 2.After turn on the power ,the light of the 7key button will be Red then flash red and blue.after about 1 minute, the light stop flashing ,it means upgrade has finished.(Note that write programs do not power outages, crashing wont be able to use) How to into Factory setting? Press"Input" button then press"2 5 8 0"Package included:

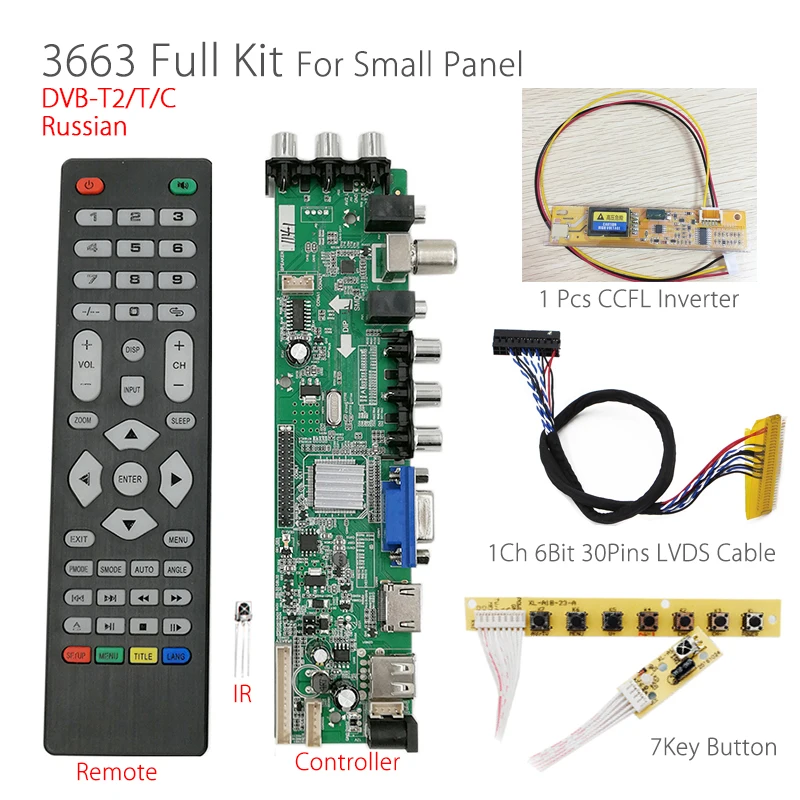

1 x 3663 Controller Board 1 x Remote Control
1 x 7-Key Button 1 x IRNot include LVDS Cable or InverterIf you need 7key button, If you need lvds cable, if you need speaker, if you need baffle stand, if you need DC 12C 4A power adapter,

If your Signal type is 1ch 6-bit 30pins and Backlight is 1pcs CCFL no driver, you can buy this kit.

Just for reference

Products Photo Connection just for reference (For Panel needs inverter)Connection just for reference (For embedded inverter)
